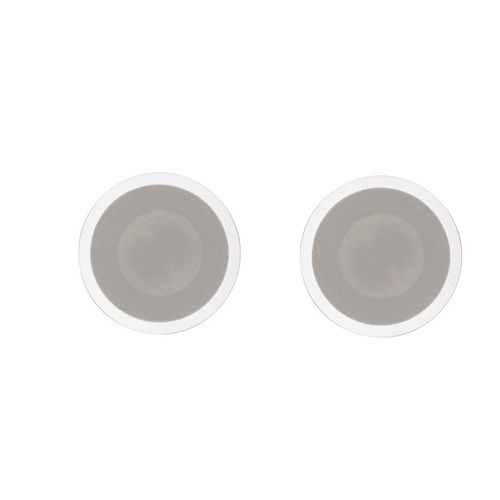

Magnat Interior IC 82
Key Specifications-
- High-End in-wall/in-ceiling loudspeaker
- Simple mounting with special mechanism
- Multi-Directivity circuit to optimize the speaker to the room
- High quality crossover with APOC
The IC 82 is the larger of two strong-sounding built-in ceiling loudspeakers in the Interior series. As with all models in the series, the bass/mid-range cone has been manufactured from a carbon-glass-fibre mix – which guarantees extremely high stability and a very clear and dynamic sound. The two built-in coaxial tweeters make two circuit versions possible – sound directed over a wide area or at specific points. A sophisticated fastening system allows the loudspeaker to be quickly installed with extreme ease.
Technical specifications
Principle
- 2-way in-wall/in-ceiling loudspeaker
Drivers
- 2 x 19 mm tweeter
- 200 mm woofer
Power Handling (RMS/Max.)
- 100 / 180 watts
Sensitivity (2.8V/1m)
- 91 dB
Impedance
- 4 – 8 Ohms
Frequency Response
- 32 – 35000 Hz
Crossover Frequencies
- 3500 Hz
Recommended Amplifier Output
- 20 – 180 Watts
Outer Dimensions Ø
- 272 mm
Cutting Out Ø
- 238 mm
Mounting depth
- 100 mm
